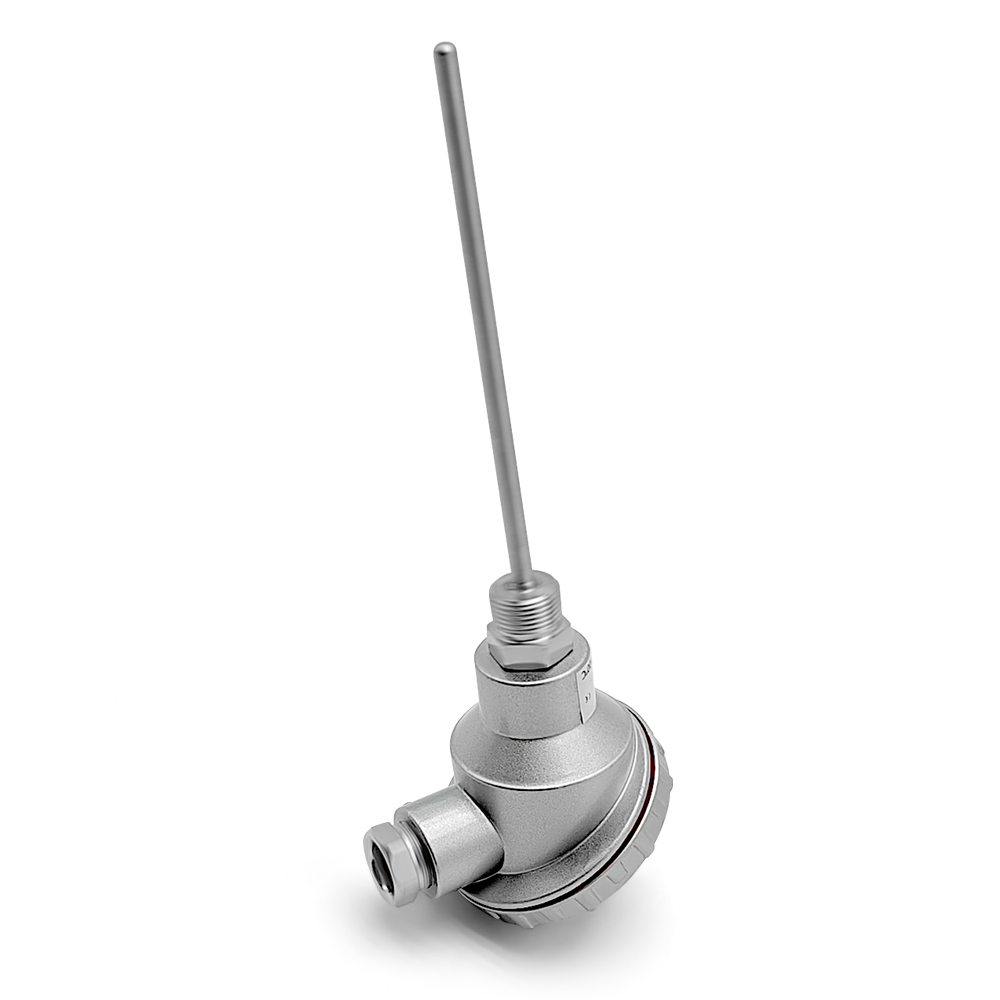

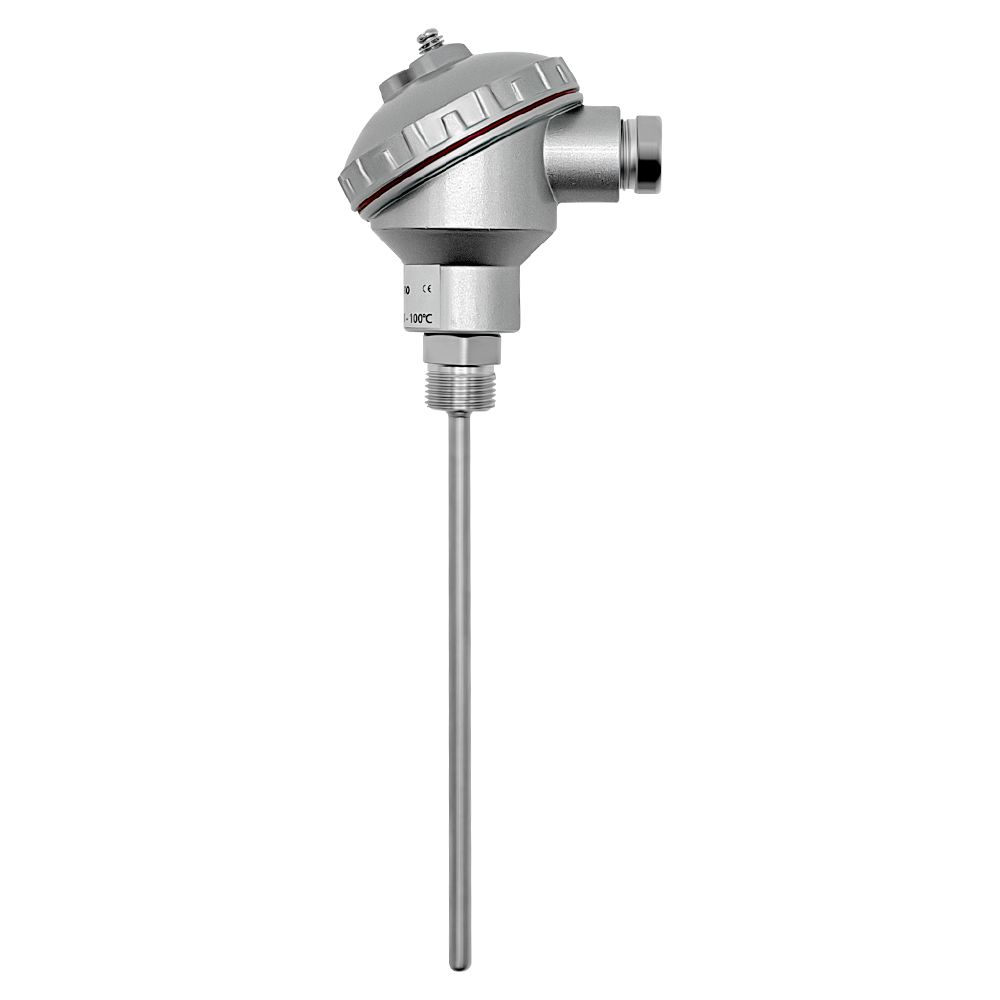

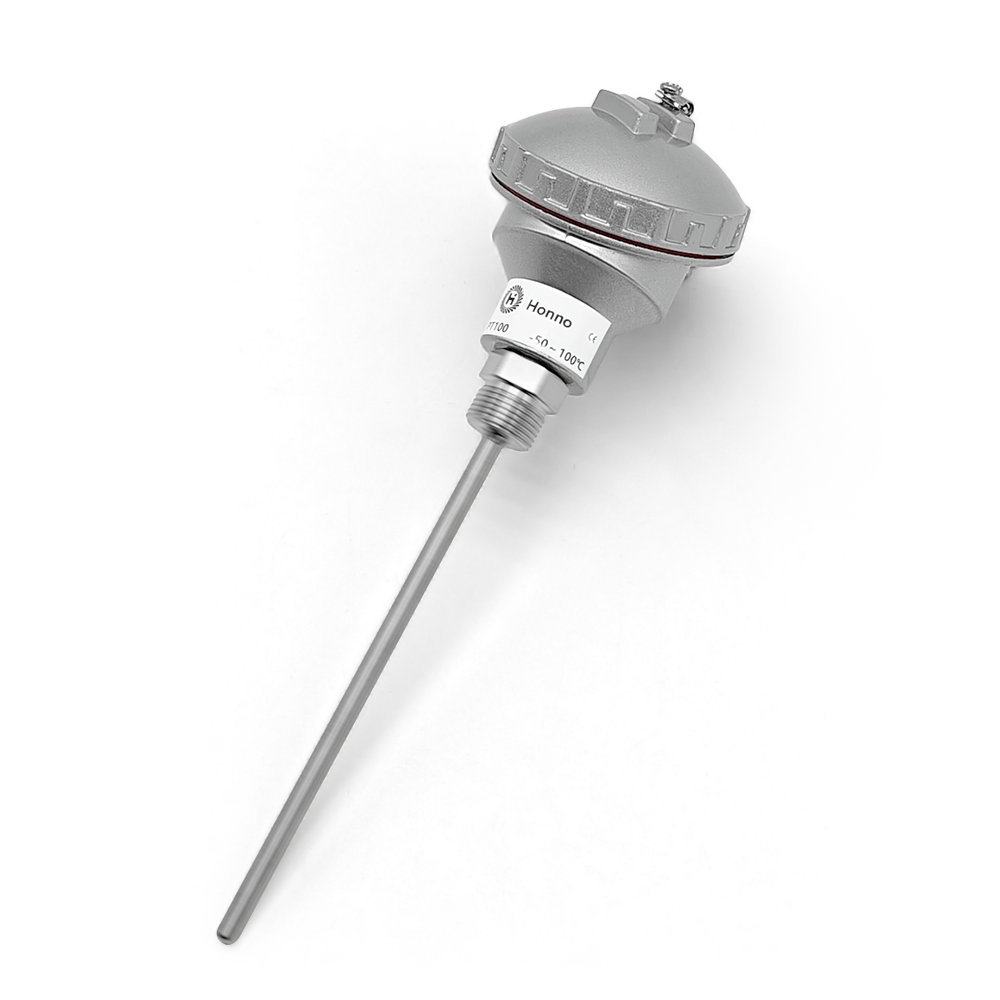

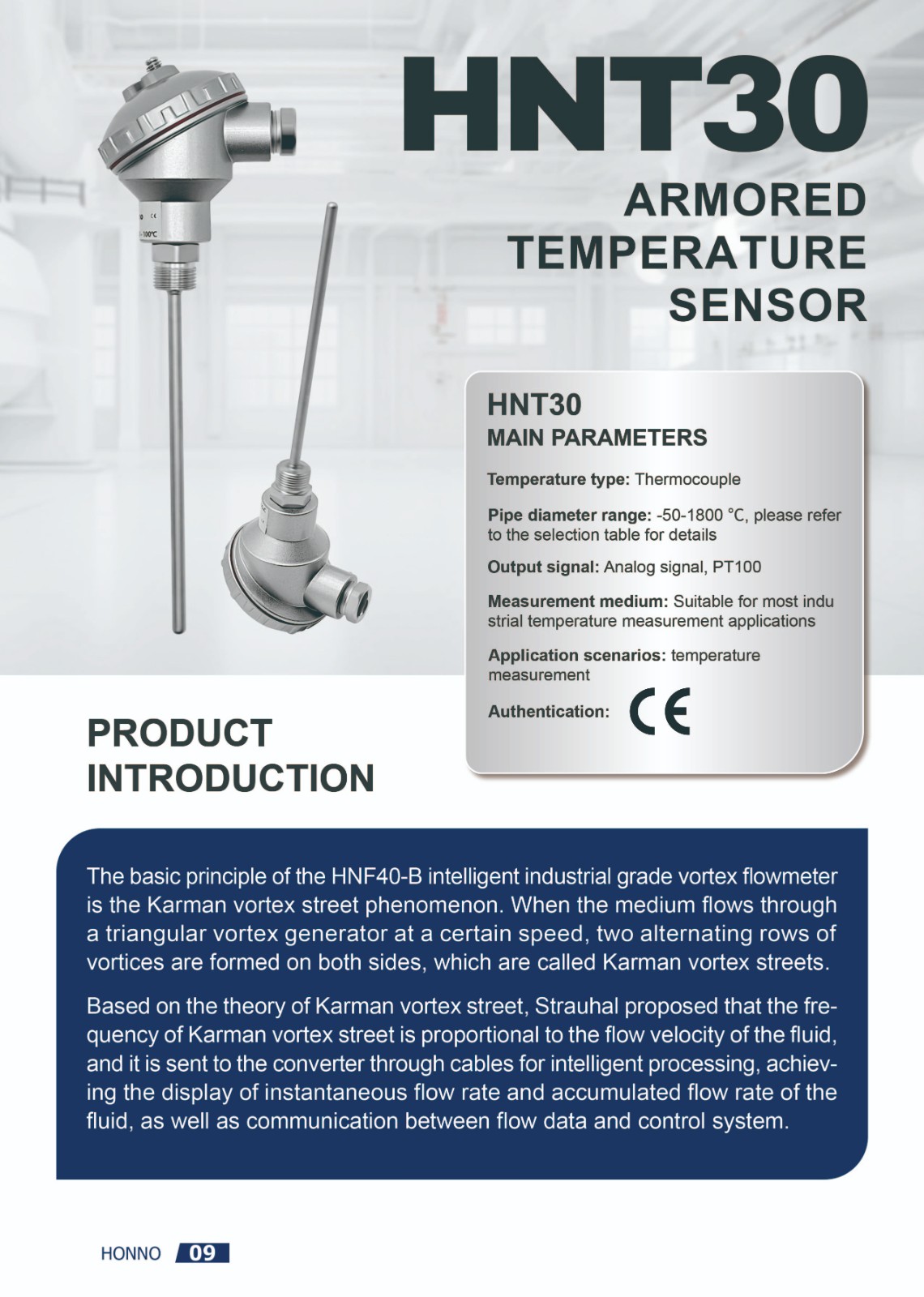

Armored temperature sensor HNT30

HNT30 Armored Temperature Sensors are temperature transmitters with a wide measuring range, using thermocouples or PT100 RTDs for temperature measurement, with signals converted to standard industrial electrical outputs by the rear processing circuit.
The all-metal housing design allows the series to be used in a variety of industrial applications. HART output is optional. Depending on the temperature range, different thermocouple conductor materials can be selected to realize targeted measurements.

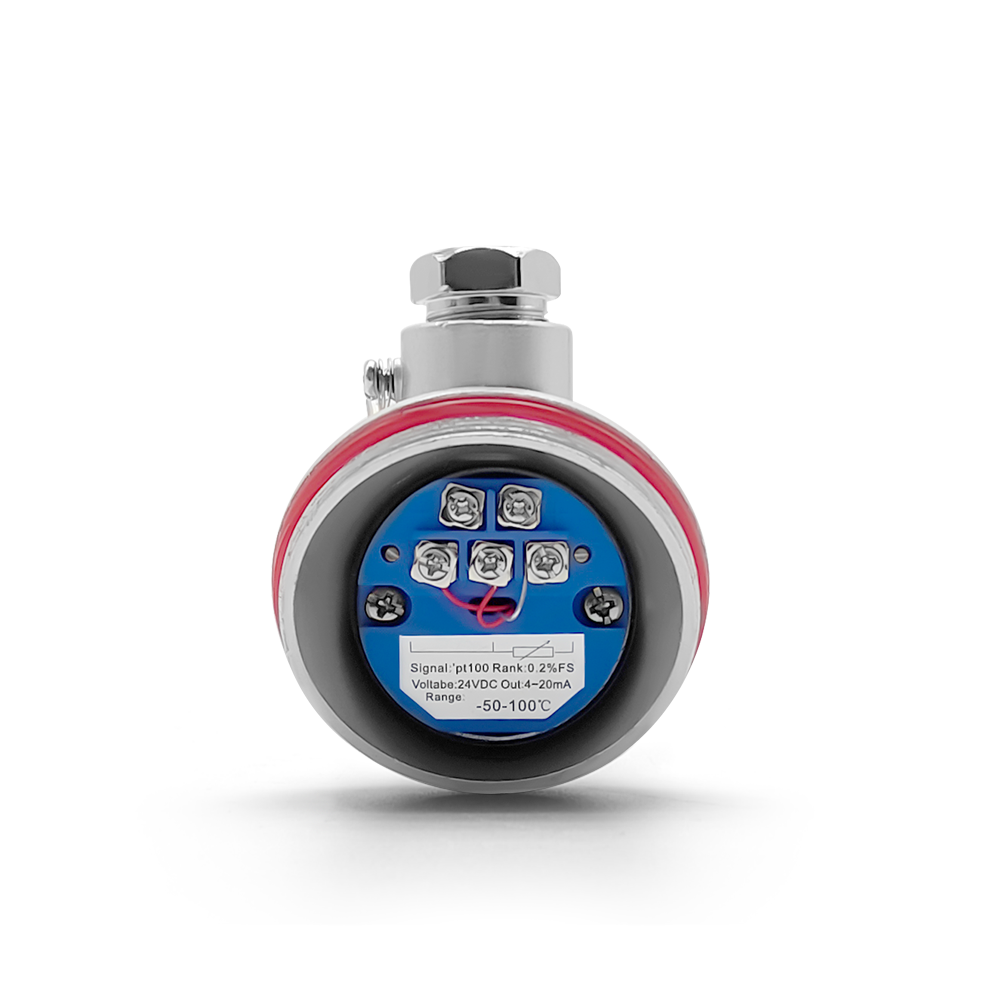

The construction consists of a thermal electrode, a protective sleeve, an insulating sleeve and a terminal block.
